AXON J1DB

Name: AXON J1DB
Brand: AXON Systems

The core system for precise digital strain gauge measurements (torque, force, strain) on rotating components.

Telemetry for the Highest Demands

Digital 1-channel strain gauge transmission

Contactless & wear-free

High accuracy under harsh conditions

Inductive power supply (IPT 4.0)

Operating temperature up to +140 °C

Monitoring rotor voltage & RSSI

Analog and CAN-bus output

Integrated shunt calibration function

Request

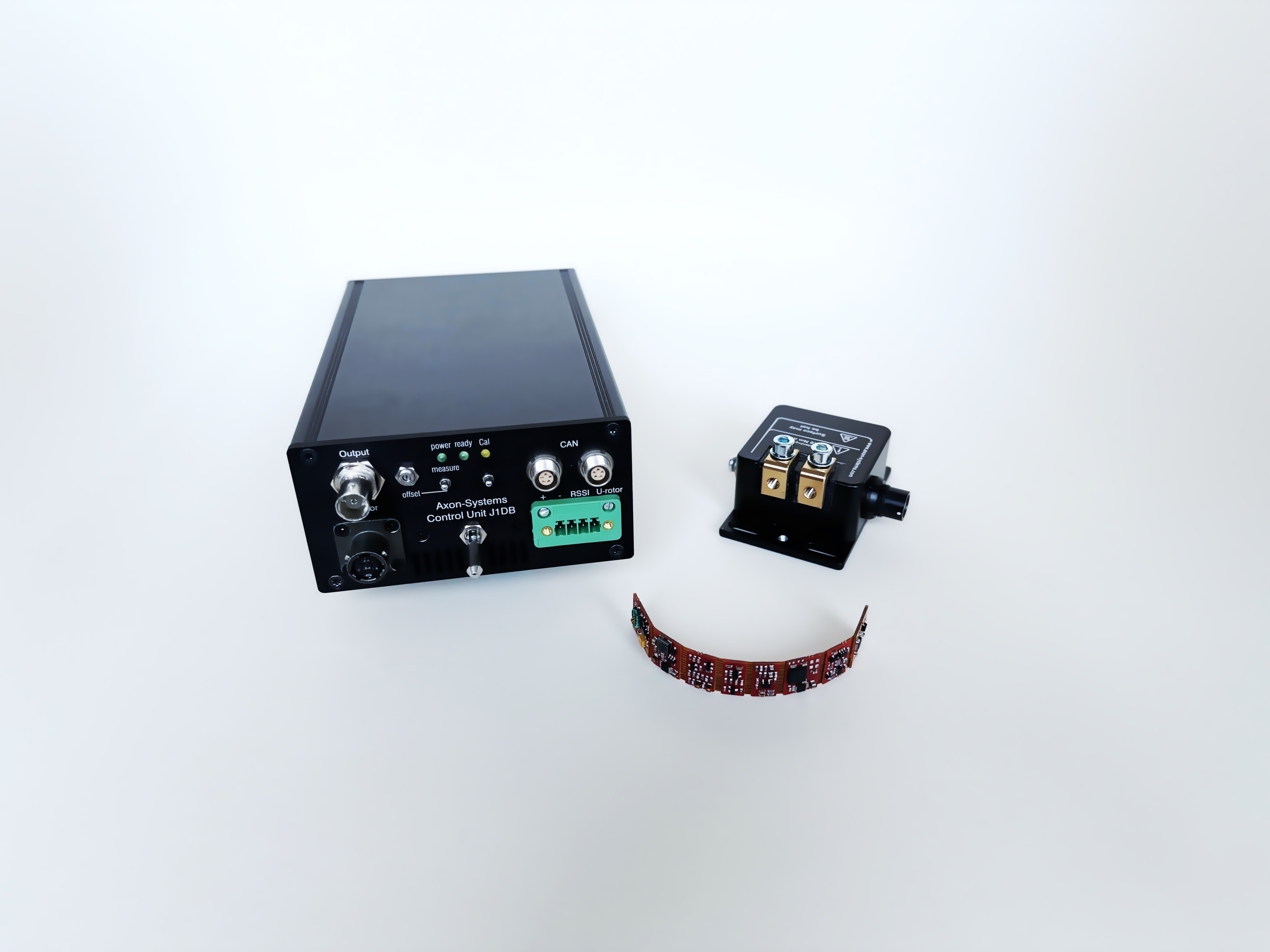

System Components

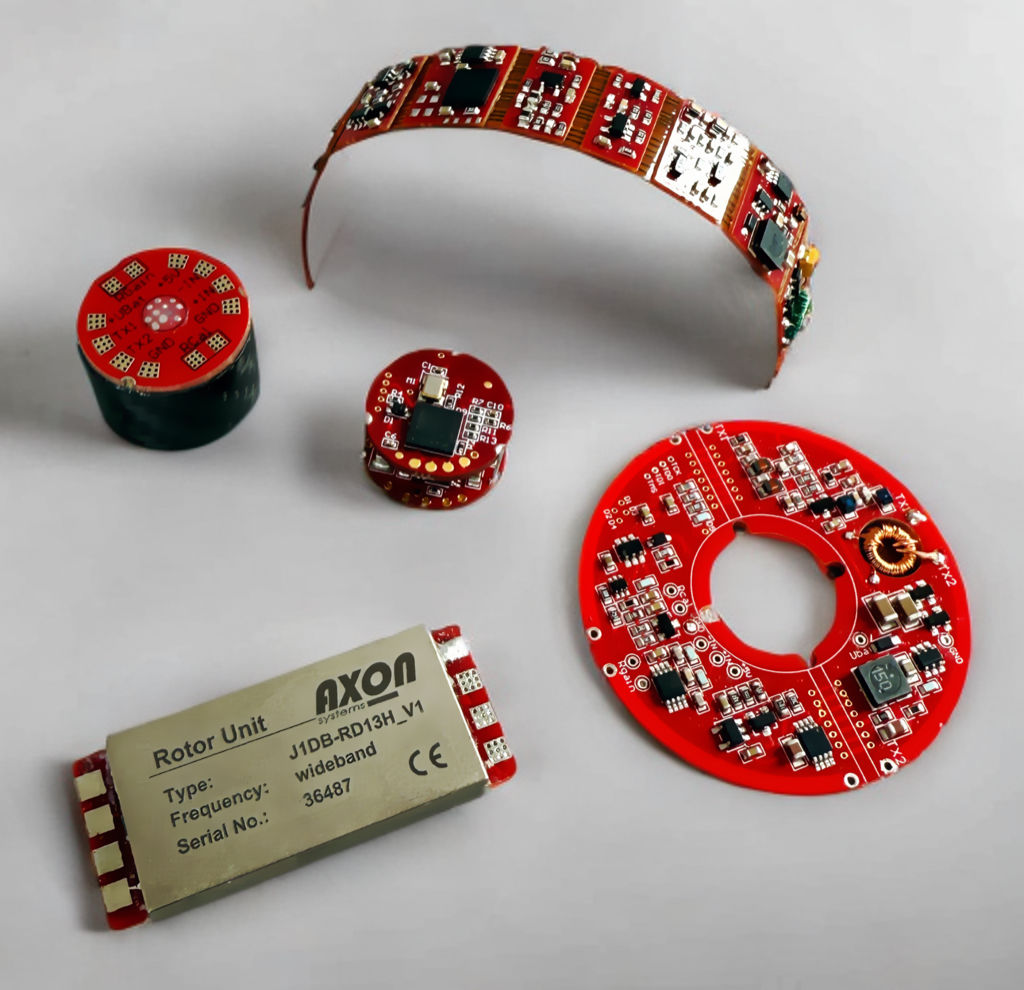

J1DB Rotor Unit

Captures strain gauge data, digitizes it, and transmits it contactlessly. Inductively powered.

Available Variants:

J1DB-RDxx (Cylindrical)
J1DB-RFxx (Flexible)
J1DB-RRxx (Cylindrical)
J1DB-RQxx (Disc-Shape)

Stator Unit

Inductively powers the rotor and receives measurement data. Flexible ring antenna or pickup.

Available Variants:

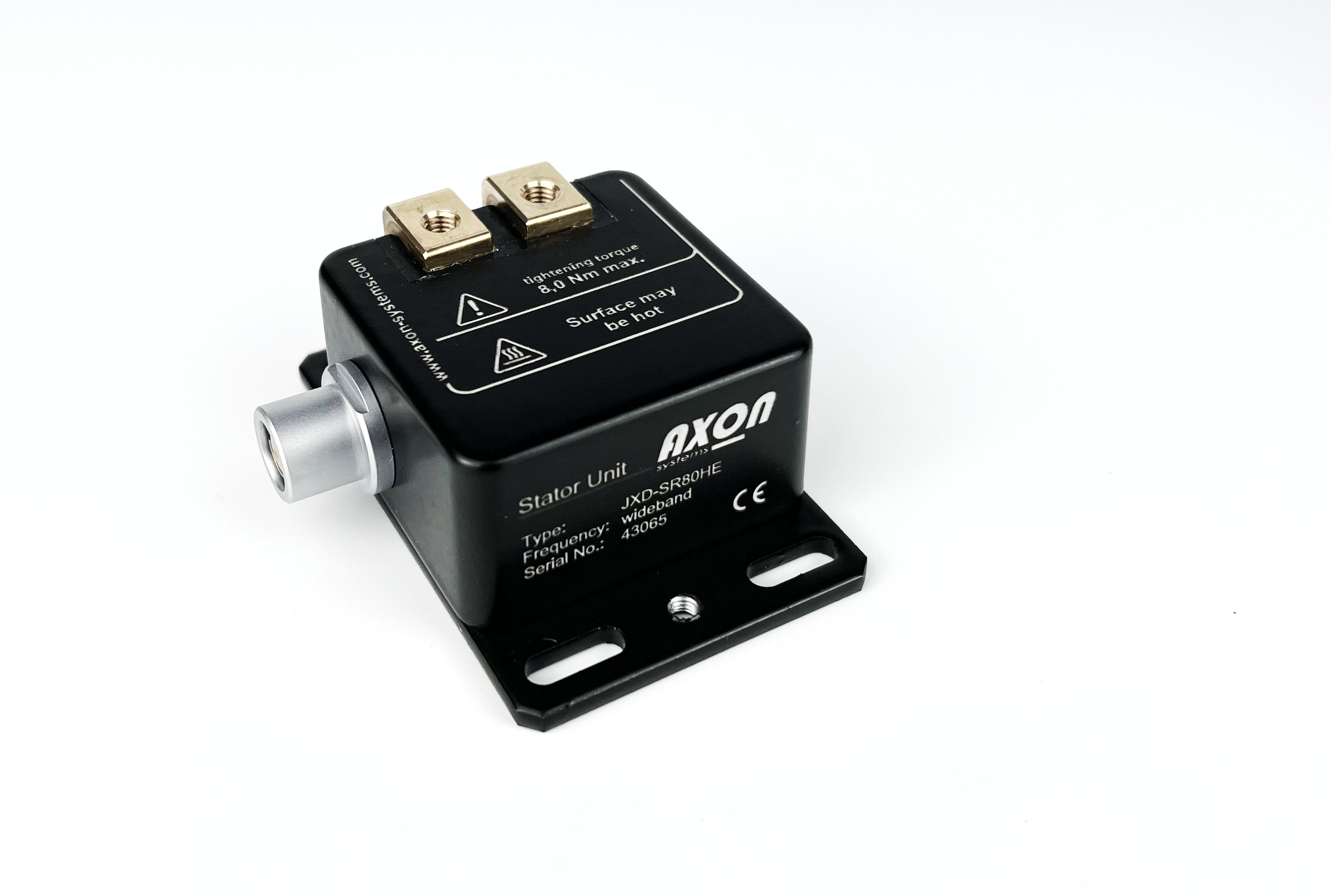

JXD-SR80xx (Ring Stator)
JXD-SE60xx (Inductive Stator)

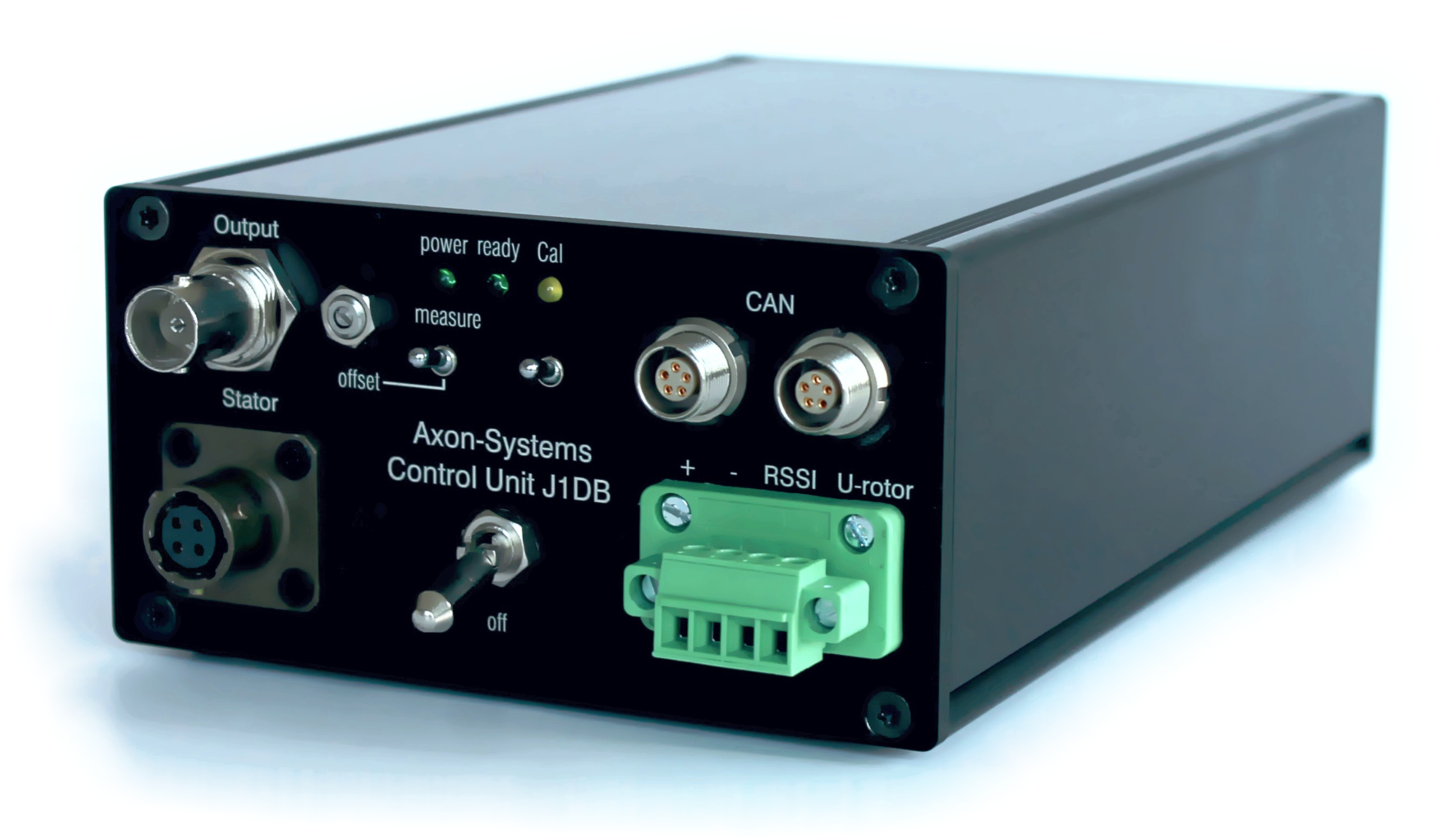

J1DB Control Unit

Controls power supply & reception, outputs measurement data analog (±10V) and digital (CAN). Monitors system parameters.

Available Variants:

J1DB-CCxx

Technical Details

Product Description

The AXON J1DB telemetry system is the standard tool for reliable strain-gauge-based measurements such as torque, force, or strain on rotating shafts. Thanks to inductive power supply and digital data transmission, it operates wear-free and delivers accurate results even under harsh conditions in vehicles, test benches, or industrial setups. Various rotor designs (cylindrical, disc) enable flexible integration.

Component3D View

Drag to rotate, scroll to zoom

View:

Specifications

Channels	1× strain gauge
Resolution	16 bit
Outputs	Analog (±10V), CAN bus
Bandwidth	1000 Hz (depending on model)
Rotor operating temperature	Up to +140 °C (depending on variant)
Transmission distance	1 – 80 mm
