AXON J2DT

Name: AXON J2DT
Brand: AXON Systems

Combines a strain gauge signal with a thermocouple signal in a compact system.

Telemetry for the Highest Demands

Combined 1× strain gauge + 1× temperature

Contactless & wear-free

Precise strain gauge and temperature measurement

Inductive power supply

Integrated cold junction compensation

Operating temperature up to +125 °C (TBC)

Separate analog outputs

Request

System Components

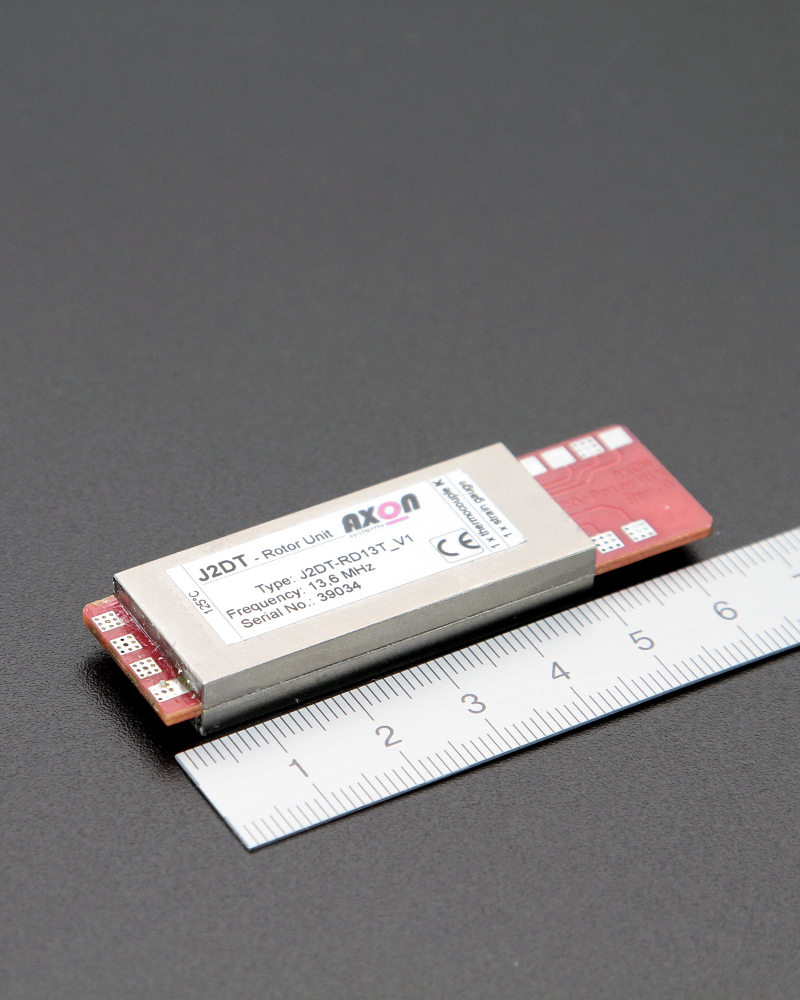

J2DT Rotor Unit

Captures 1× strain gauge and 1× thermocouple signals, digitizes and transmits both contactlessly.

Available Variants:

J2DT-Rotor-Standard (details on request)

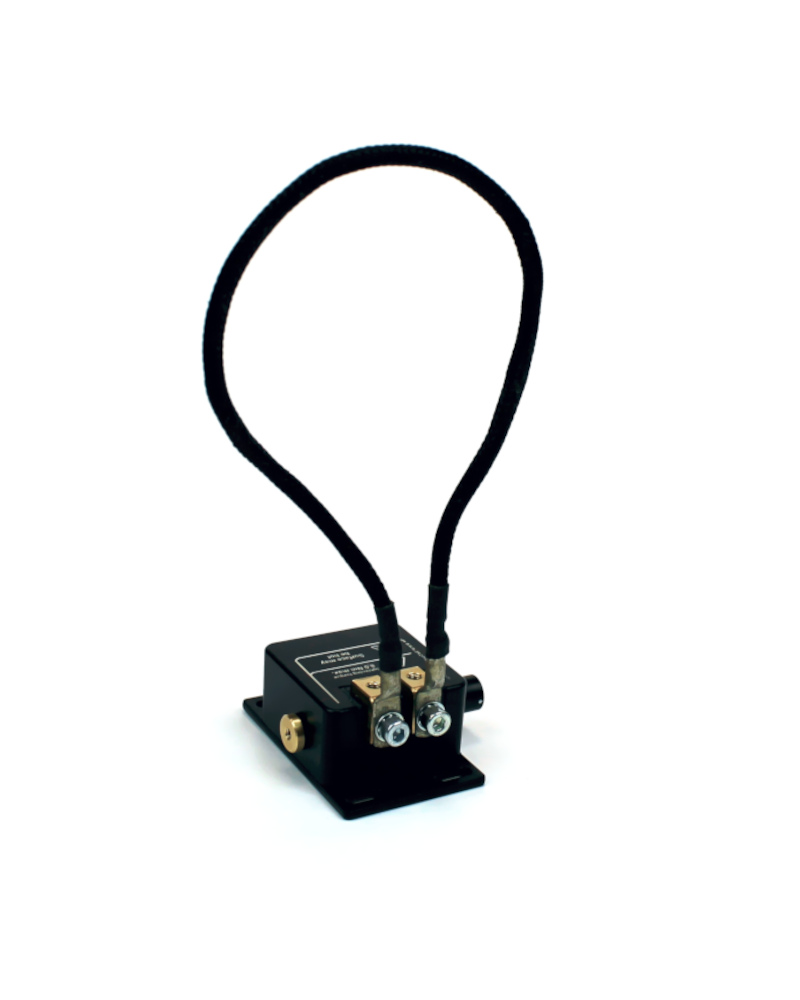

Stator Unit

Inductively powers the rotor and receives the combined measurement data.

Available Variants:

JXD-SR70/T/E/TE (Ring Stator)
JXD-SE60/T (Inductive Stator)

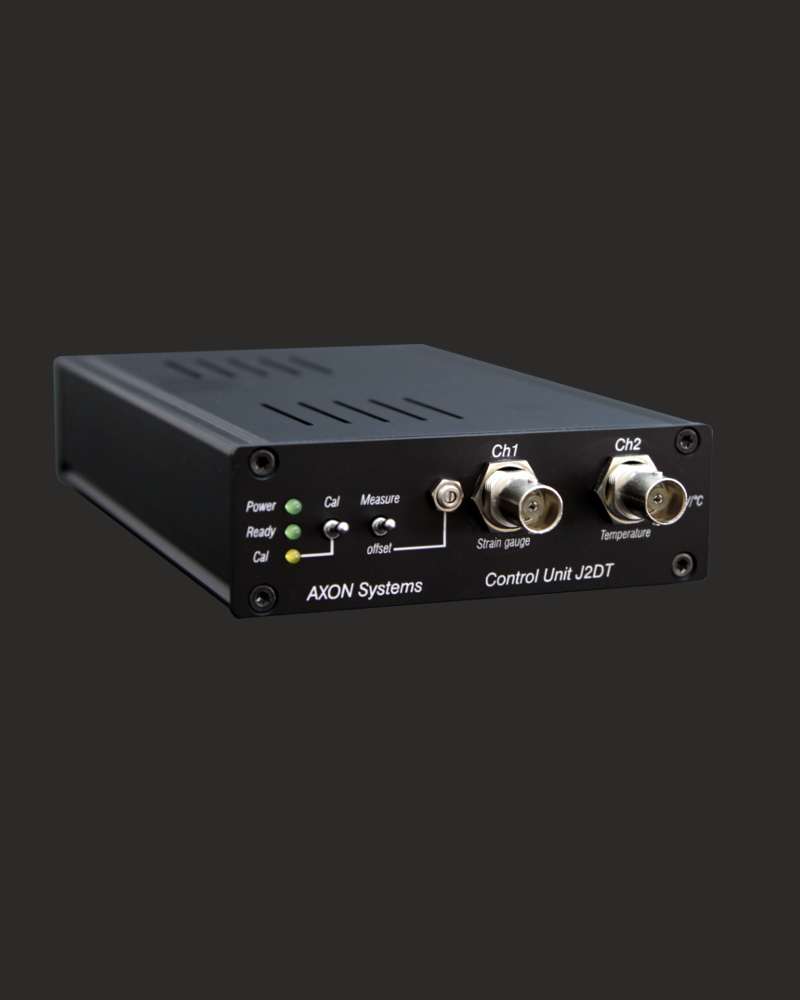

J2DT Control Unit

Controls power supply & reception, outputs one analog strain gauge and one analog temperature signal.

Available Variants:

J2DT-ControlUnit-Standard (details on request)

Technical Details

Product Description

The AXON J2DT offers a flexible solution for applications requiring simultaneous measurement of strain/torque and temperature on the same rotating component. It transmits both strain gauge and thermocouple signals contactlessly and reliably. Ideal for validating components where thermal effects on mechanical stresses are investigated.

Specifications

Measured quantities	Strain gauge, temperature (thermocouple)
Channels	1× strain gauge, 1× thermocouple
Resolution	Strain gauge: 12 bit, temperature: 16 bit (TBC)
Temperature measurement range	Typical -40 °C to +800 °C (TBC)
Cold junction compensation	Integrated
Outputs	1× analog strain gauge, 1× analog temperature (scaled, TBC)
Rotor operating temperature	Up to +125 °C (TBC)
Transmission distance	1 – 70 mm
Control unit power supply	9 – 36 VDC (TBC)
