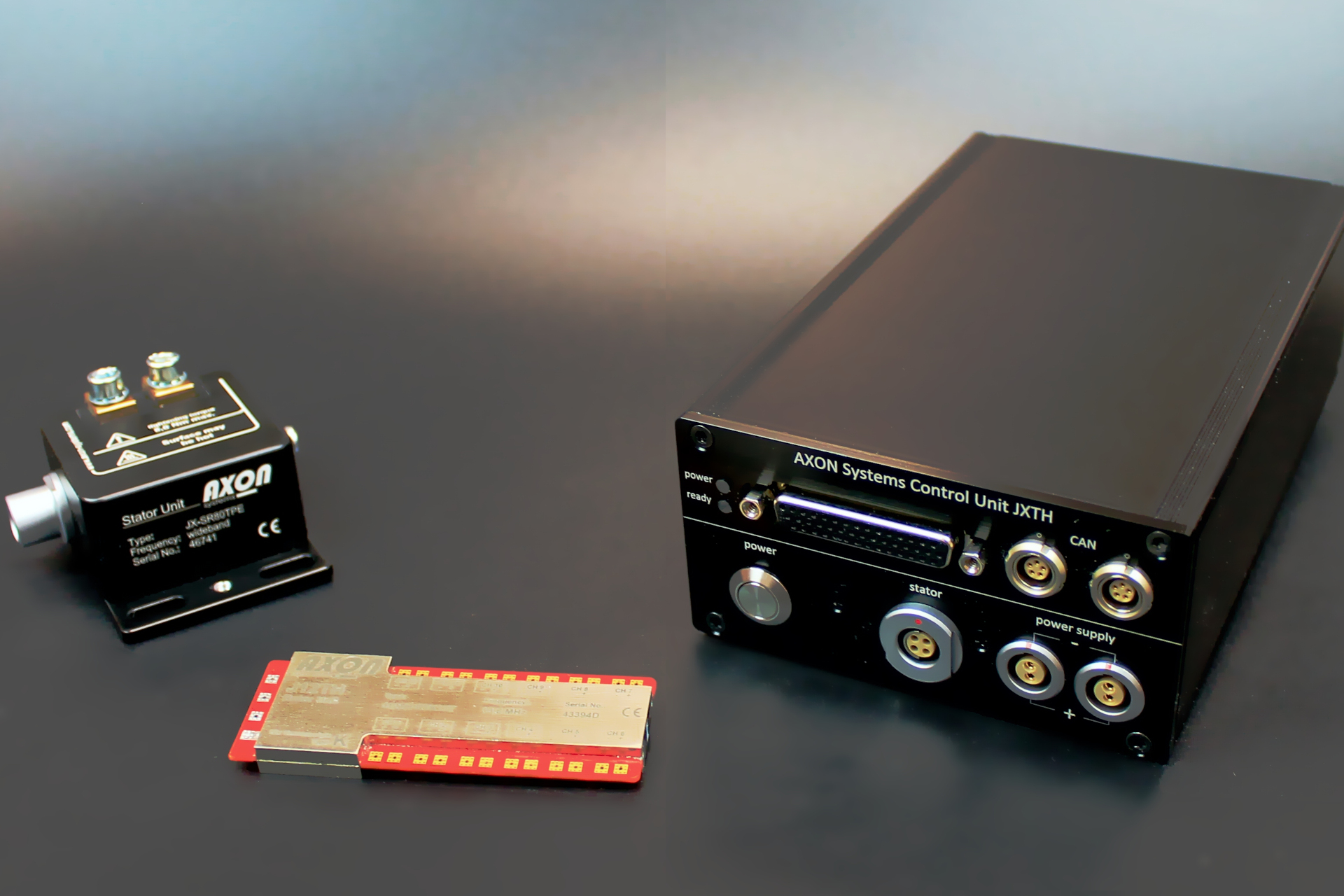

J8T | Product Information
The central control unit and data output of the telemetry system. It regulates and monitors the inductive power supply as well as other important operating parameters and outputs the measurement data from the shaft as an analog voltage signal or via CAN. The inductive power supply and HF data reception are continuously monitored and regulated during operation to ensure optimal data transmission.

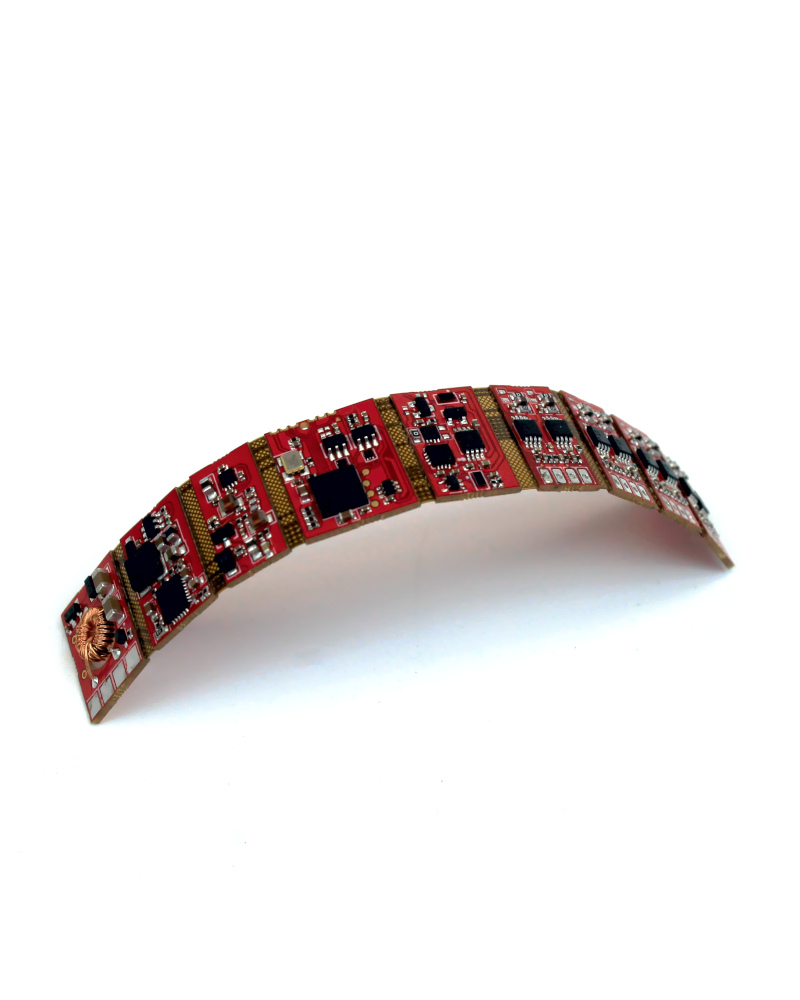

Rotor Unit
Rotor Unit
Captures the measurement signals from the thermocouples, digitizes them, and transmits the digital data stream wirelessly between the rotating shaft and the Stator Unit. Even in oil and at operating temperatures of up to +140°C in continuous operation, stable power and data transmission can be achieved. Various designs and channel numbers from 1 to 16 channels are available.

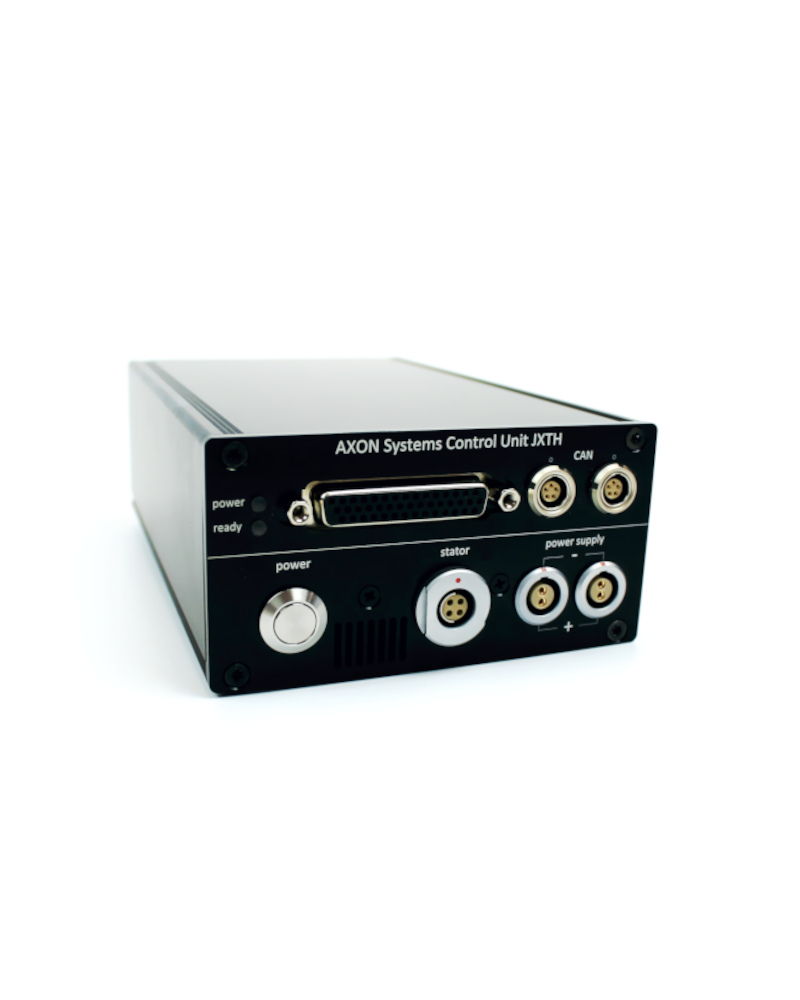

Control Unit
Control Unit
The central control unit and data output of the telemetry system. It regulates and monitors the inductive power supply as well as other important operating parameters and outputs the measurement data from the shaft as an analog voltage signal or via CAN. The inductive power supply and HF data reception are continuously monitored and regulated during operation to ensure optimal data transmission.

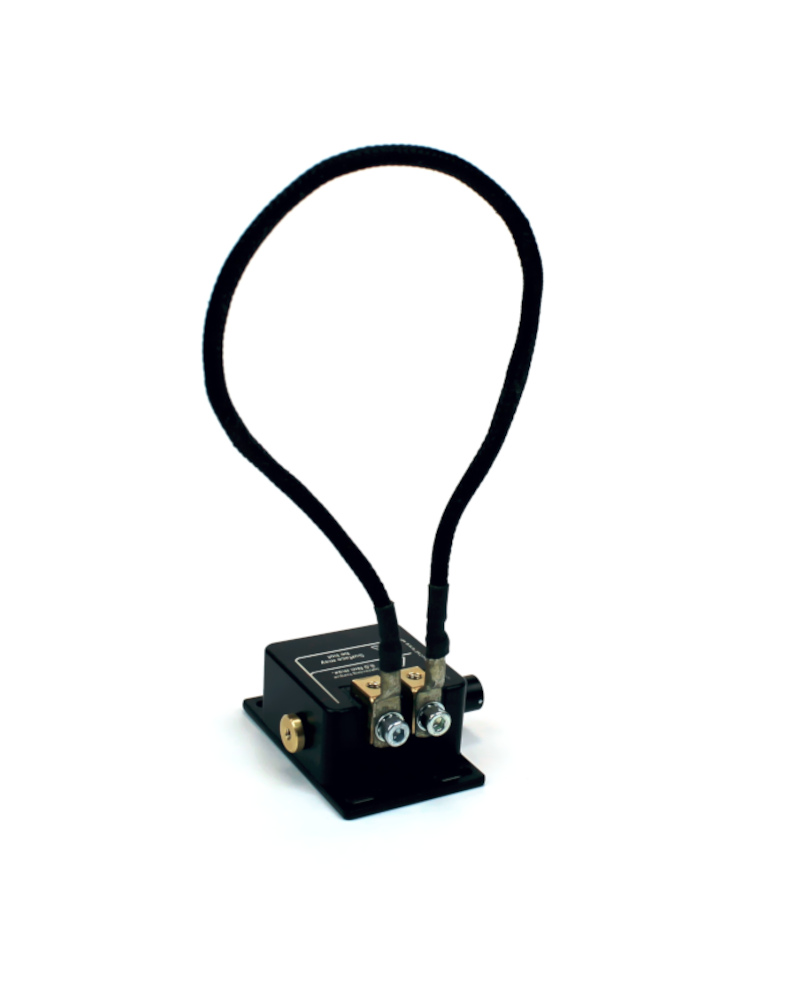

Stator Unit
Stator Unit
Inductively supplies the Rotor Unit with power and simultaneously receives the measurement data from the shaft. Distances between the rotor and stator antenna of up to 80 mm can be achieved. Axial and radial relative movements between the stator and rotor are covered over large ranges.
Characteristics
- Operating temperatures up to + 140 ° C
- high measuring accuracy
- inductive power supply
- robust
- reliable
- easy installation
